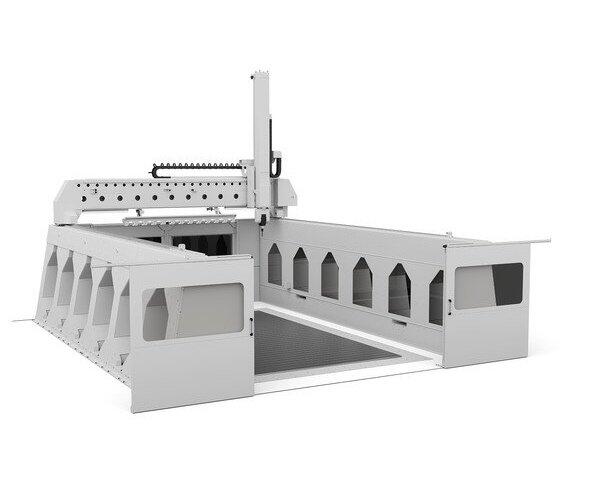

CNC machining center Promax

Alternative name: CNC centre Promax

Series Promax Add to your comparison CNC machining center Promax

Category: Profi
Intended use: Massif, composite, plastics

 CNC PROMAX is a five-axial woodworking centre equipped with biaxial head with the liquid-cooled spindle and with the automatic exchange of tools. The machine is principally designed for the production of intricate furniture components and wooden or Styrofoam models for metal foundries, and similar. Machinable workpiece height is given by the Z-axis travel height, available in travel heights of 1,000 mm (workpiece 750 mm), 1,500 mm (workpiece 1250 mm), and 2,000 mm (workpiece 1750 mm).

The basic construction of the machine is formed by weldments of steel plates and castings made of aluminum alloy. Weldments and castings are annealed to reduce the internal tension and subsequently machined. Characteristic feature is the longitudinal travel of the crossmember on the X axis on upper areas of side-walls - so-called upper gantries. On both sides of the crossmember there are clamped driving servo-motors of the axis X.

Interesting product

  • five-axial woodworking centre equipped with biaxial head
  • production of intricate furniture components and wooden or Styrofoam models for metal foundries, and similar.
  • up to height of the workpiece of 700 / 1200 / 1700 mm.

Ledr Jan
 CNC center sale

I will be happy to provide you all information:
Tel.: +420 569 430 746
Mob.: +420 734 622 747
E-mail:

I can also offer:

The CNC centre Promax is designed for:

  • production of intricate furniture components and wooden or Styrofoam models for metal foundries, and similar.
Weight kg according to the type and configuration of the machine
Travel X mm 3 800-20 800
Travel Z mm 1000 (1500, 2000)
Maximum dimension of the workpiece in axis X mm 3 000-20 000
Maximum dimension of the workpiece in axis Y mm 2000 / 3000 / 4000 / 5000
Maximum dimension of the workpiece in axis Z mm 700 (1200, 1700)
Fast shift - axis X and Y m/min 50
Fast shift - axis Z m/min
Performance kW (S6) 12-16,2-18
Max rpm rpm 24 000
Clamping stop - HSK F63
C axis - +/- 400
Rotary tool hopper No. 7 (14)
Motor power kW
Spindle rpm and slotting saws rpm
Vertical spindles X+Y No.
Horizontal spindles X+Y No.
Slotting saw in axis X mm
Slotting saw diameter mm
operating pressure bar
Number of workplaces No.
Vacuum pump raster desk m3 /hod
Vacuum pump beam desk m3 /hod
Number of beams No.
Input installed kVA 35
Operational air pressure bar

Standard equipment

  • SMOOTH DESK– type G
  • RASTER DESK – type R
  • DESK WITH T- SLOT – type T
  • main milling electric spindle
  • suspension tool hopper
  • greasing
  • additional outlets of compressed air and vacuum
  • safety devices
  • control – Siemens Sinumerik 840D-SL

Optional accessories

  • electric spindle 18 kw
  • extension of axis lift X by 1.000 mm
  • extension of axis lift Z by 500 mm
  • rot. Tool hopper
  • aluminium smooth desks seemly thread inserts M12
  • aluminium raster desk with vacuum
  • line external rulers lin. Axis X, Y, Z
  •  external rulers lin. Axis B, C
  • spindle with rotor position measuring
  • external machine blow
  • external machine cooling
  • tool probe
  • workpiece probe
  • chip suction from spindle
  • laser projector
  • vacuum pump 2 50m3/h
  • vacuum pump 500m3/h
  • vacuum storage 500l
  • CAM software TOP SOLID
