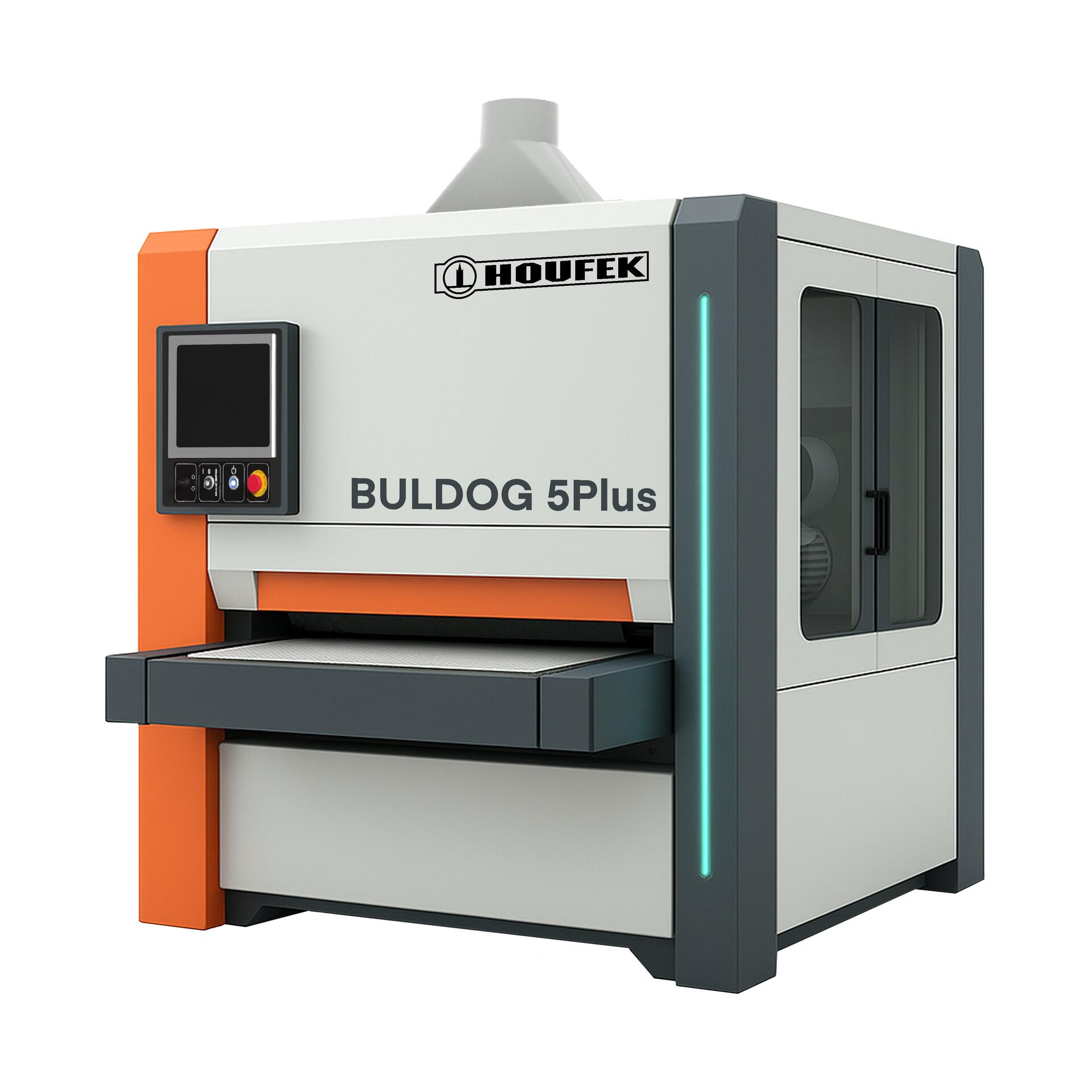

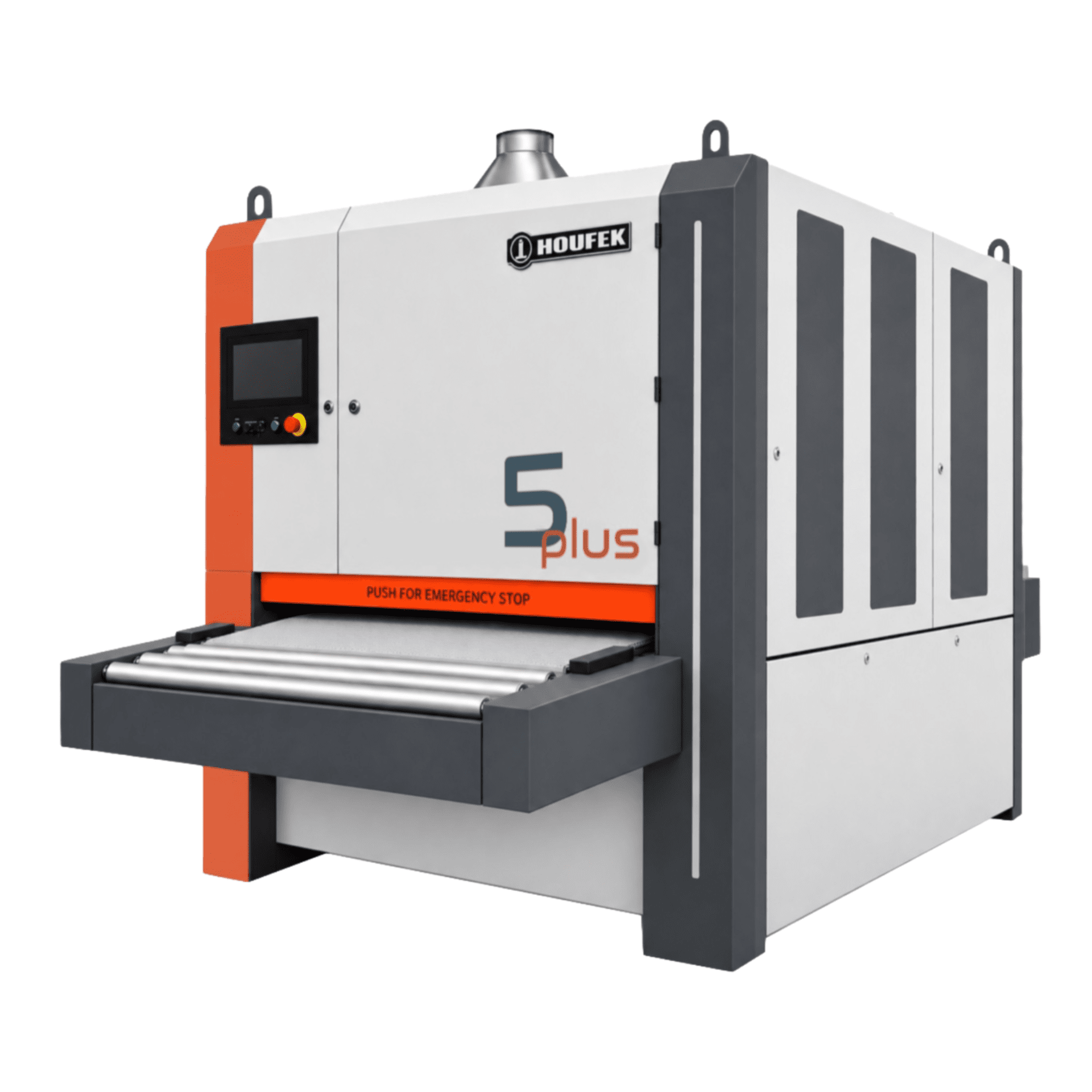

Wide belt sander BULDOG 5Plus 1300 RS
BULDOG 5Plus 1300 RS is a powerful sander, with one R-type aggregate and one S-type aggregate , with an ergonomic design that ensures easy and efficient sanding up to a maximum width of 1300 mm while maintaining a long service life. It is designed for professionals and demanding DIY users who value robust construction, reliability, and high-quality workmanship.
Massif Wood Veneer Grinding
Technical specifications
- Unit R
- Sanding belt length 2200 mm
- Working roller diameter 160 mm
- Rubber-coated roller, 90 Sh
- Frequency inverter for main motor – belt speed 3–18 m/s
- Unit S – Divided electronic pad PS30E with lamellar driving belt
- Sanding belt length 2620 mm
- Segment width 30 mm
- Frequency inverter for main motor – belt speed 3–12 m/s
- Adjustable outer pad segments +/- 1 to 3 segments
- NC control system, 15” touchscreen panel
- Remote diagnostics via VPN
- AES – automatic energy saver

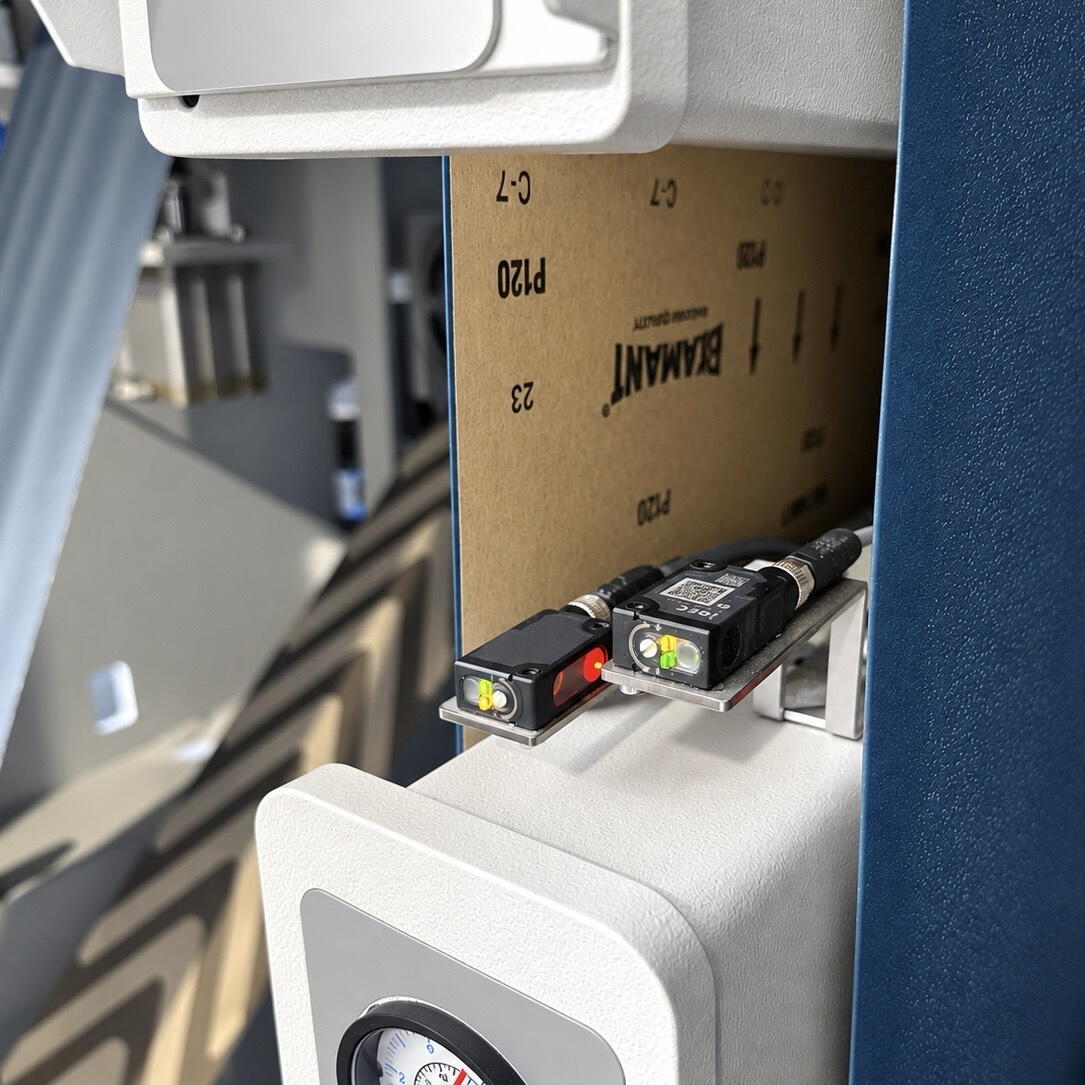

- BWD – belt wear detection
- Belt loading from the left side
- Motorized table lift – workpiece height 3–160 mm
- Automatic centering of feed belt
- Feed belt speed controlled by frequency inverter – 3–15 m/min
