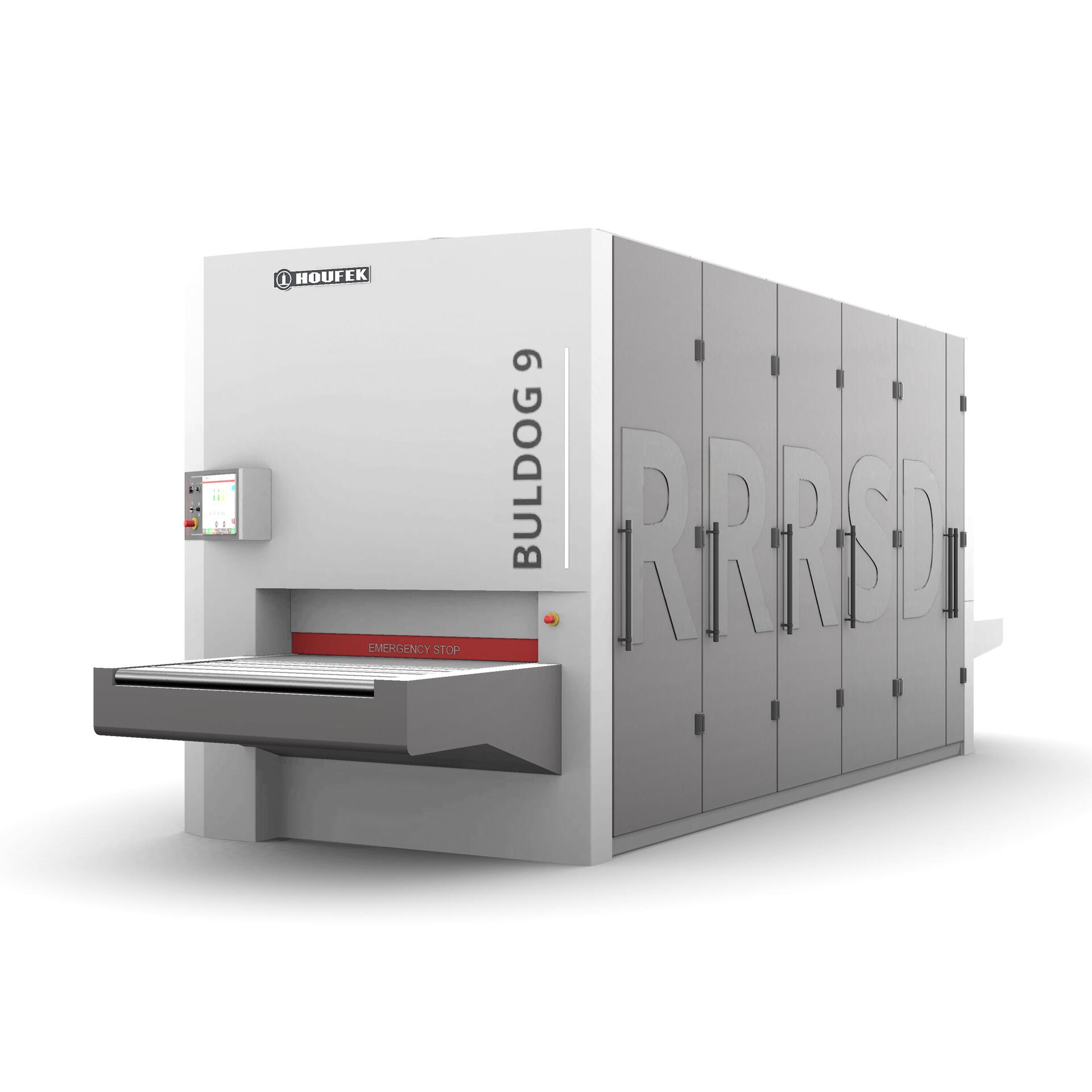

Wide belt sander BULDOG 9 1350 T

BULDOG 9 is a wide-belt sander, equipped with T-type units, designed for demanding operations, such as sanding solid wood, veneered surfaces, MDF, or base fillers and coatings up to 1350 mm wide. The constant table height allows the machine to be used in production lines. The high quality of the sanded surfaces and the degree of automation in the sanding processes place the machine in the top class.

Massif Wood Veneer Varnish Grinding Milling

Technical specifications

Modular machine system - allows the configuration of the machine to adapt to changing production needs

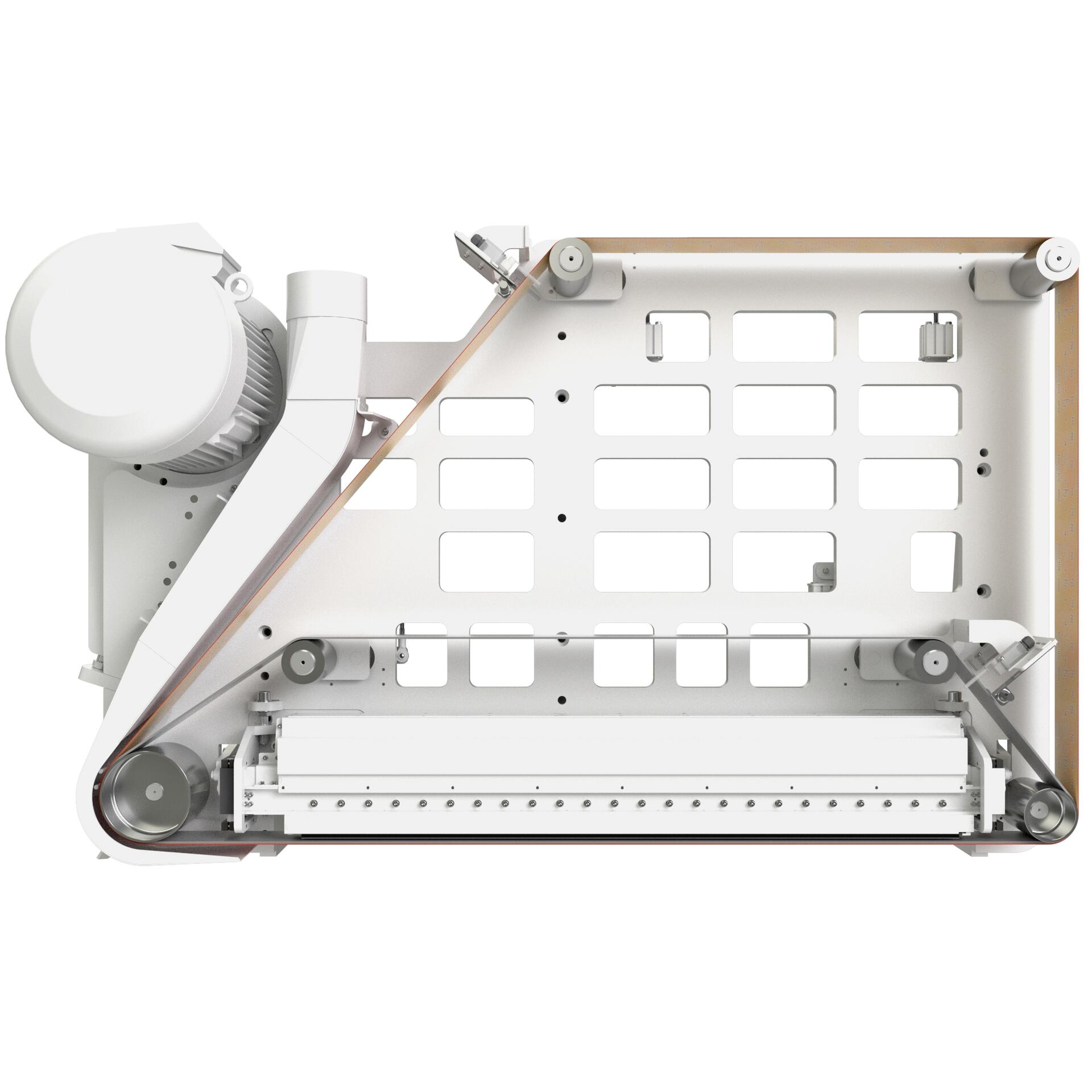

Fixed table height, height adjustable sanding unit (upper part of machine)
Working range 3–200mm
Feed belt motor frequency inverter - speed 3–15 m/min
NC machine control, colour TouchScreen 15"
Laser workpiece thickness measuring
Motor power 37 kW
Length of sanding belt 3260 mm
Width of sanding belt 150 mm
Motor frequency inverter 2-19 m/s.
Eletronic controlled segmented pad - width of segment 30mm
width of pressure pad 150 mm
Oscillation blower for sanding belt
