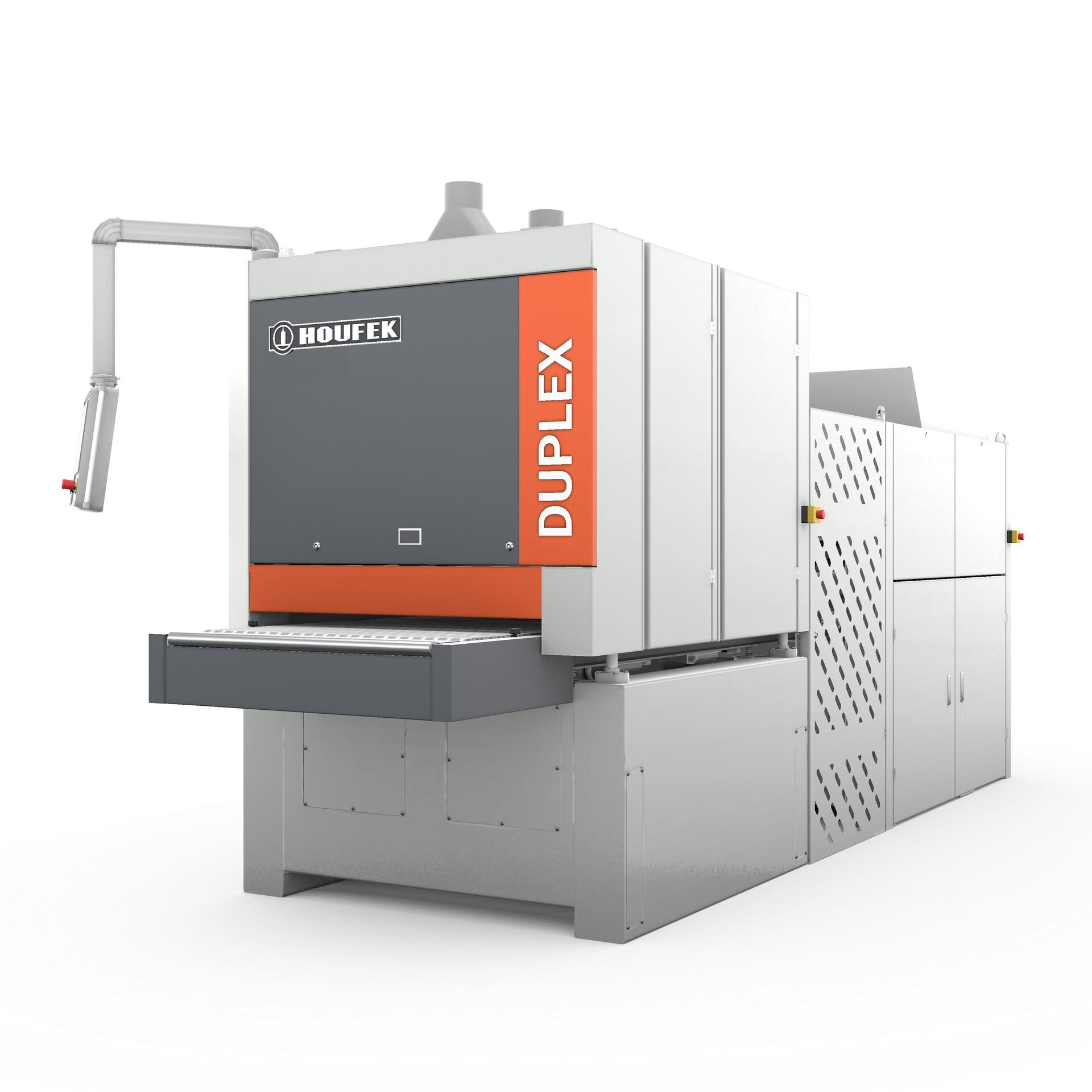

Wide belt sander DUPLEX 400 RRC-RRC
The DUPLEX sander is a high-performance machine with RRC-RRC type aggregates designed for double-sided sanding of panel materials up to 400 mm wide. It is ideal for demanding applications in the wood processing industry, where high efficiency and precision are required.
Massif Wood Veneer Grinding
Technical specifications
- 1,2,4,5. working roller rubbered Ø 160 mm, 90Sh
- 3,6. working roller rubbered Ø 160 mm, 45Sh
- Sanding belt 2620 mm
- Fixed table height, h = 1100 mm, height adjustable sanding unit
- Basic configuration - 1. top / 2. bottom sanding
- Hard - electronic adjustable pad from front panel
- Minimum workpiece length 500 mm
- NC machine control, colour Touchscreen
- Motorized height adjustment of sanding unit - workpiece height 10 -160 mm
- Feed belt motor with frequency inverter - speed 3 - 15 m/min
- Vacuum table - bottom sanding
