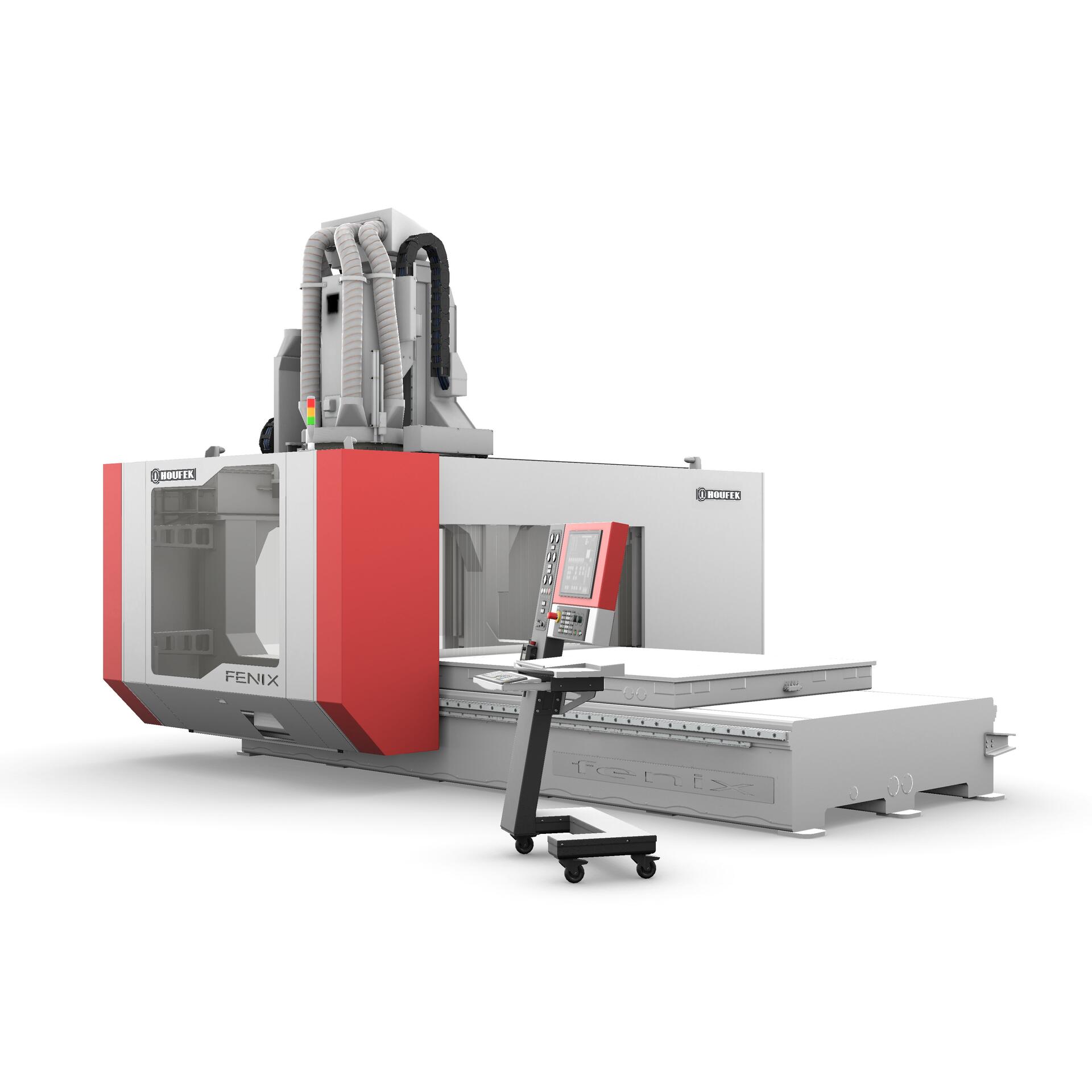

CNC machining center FENIX
Continuous five-axis CNC machining centre designed for machining complex large parts. Suitable for complex and technologically demanding processes.
Composite Aluminum
Technical specifications
- 3-axis workpiece dimensions X 3000 - 10000mm, Y 1500 / 2000 mm, Z 650 / 850 mm
- 5-axis workpiece dimensions X 2300 - 10000mm, Y 1500 / 2000 mm, Z 650 / 850 mm
- Work table size 1500/2000 x 3000 mm
- Fixed FR-2 carta table
- Main spindle 12kW / 0-24000 RPM, HSK 63F
- 90° 2-axis head osa C +/- 400°, B +/- 110°
- Tool magazine 7 ks
- Control system Siemens / FANUC
