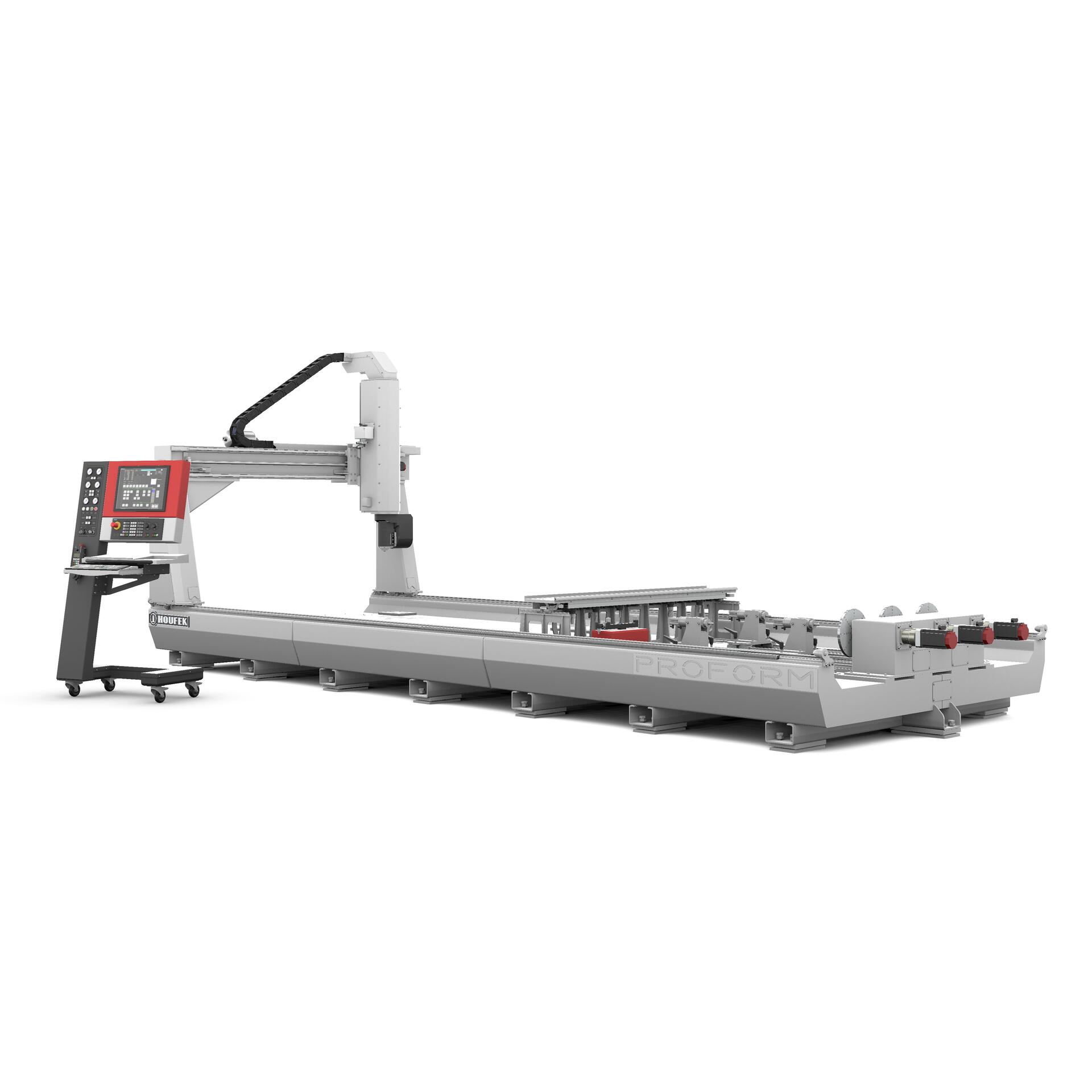

CNC machining center PROFORM X5
The CNC Proform X5 is a five-axis machining center equipped with a dual-axis head with liquid-cooled spindle and automatic tool change. The machine is mainly designed for the production of complex shaped parts and wooden or polystyrene models for metal foundries etc.
Composite Aluminum
Technical specifications
- 3-axis workpiece dimensions X 2000 mm, Y 1400 / 1500 mm, Z 300 mm
- 5-axis workpiece dimensions X 2000mm, Y 800 / 1000 mm, Z 300 mm
- Work table size 1600 x 2000 mm
- Fixed FR-2 carta table
- Main spindle 12kW / 0-24000 RPM, HSK 63F
- 90° 2-axis head osa C +/- 320°, B +/- 120°
- Tool magazine 7 ks
- Control system Siemens / FANUC
