Wide belt sander Maxx 4 400Maxx 4 400

Original construction of the series Maxx 4 has been developed for customers who require simplicity, reliability and quality for all technologies of sanding. Metal sanding is very easy task for this machine.

Maxx 4 excels in its robustness, reliability and variable combination of sanding units. Main advantage of wide belt sanders Maxx is satisfaction and reliability of thousands of customers proven worldwide.

Machine benefits

2011
We produce the machine since 2011
11
We delivered the machine to 11 of the world's countries
250
We produced the machine for 250 of satisfied customers

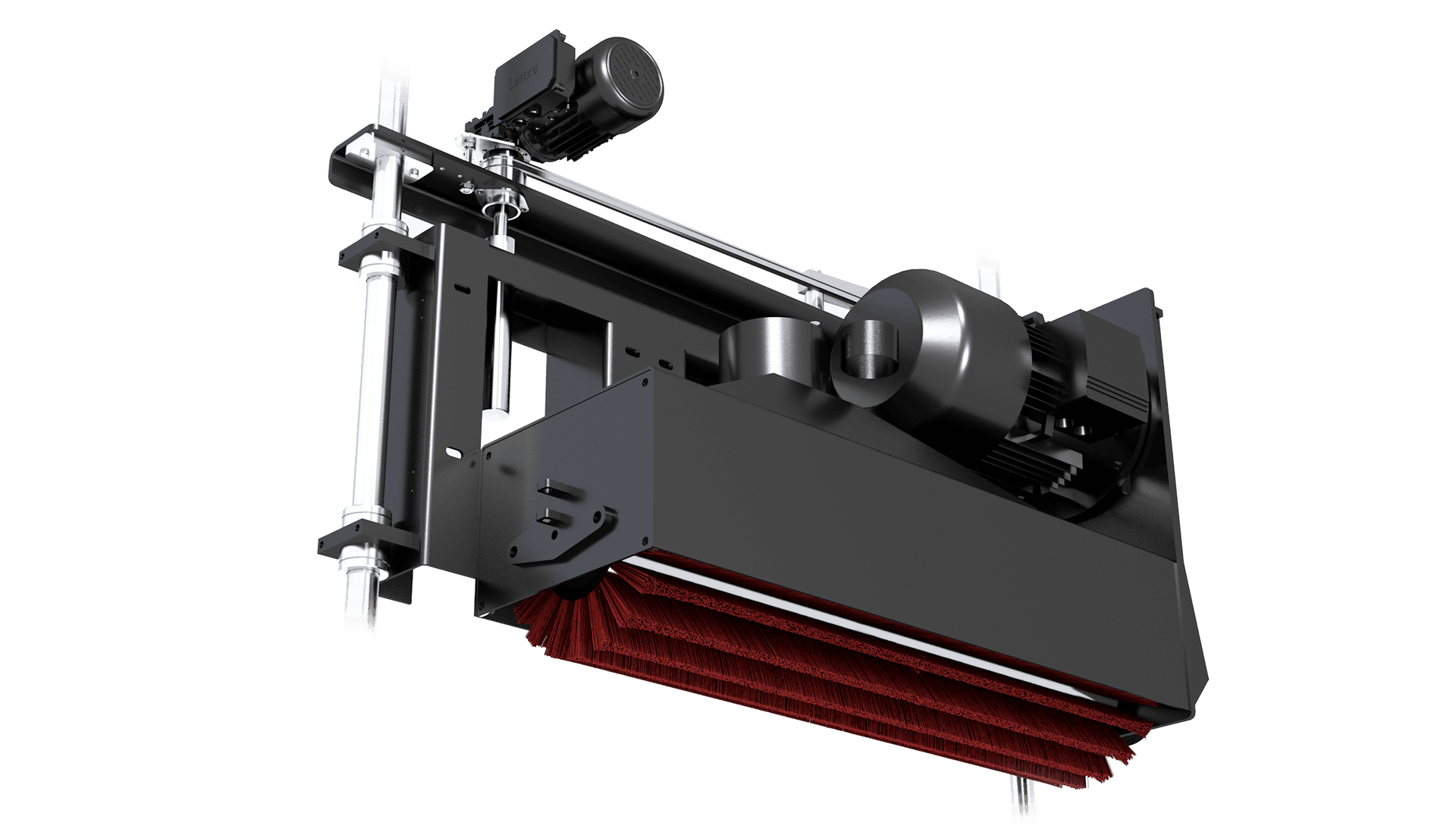

combines 3 different types of working units (drum brush B, disc brush D, grinding roller R) combines 3 different types of working units (drum brush B, disc brush D, grinding roller R)
sand up to 400 mm wide material sand up to 400 mm wide material
sanding belt length is 1900 mm - optional  2200 mm sanding belt length is 1900 mm - optional 2200 mm
7,5 - 11 kW for unit R, 7,5 kW for unit B, 1,1 kW for unit D 7,5 - 11 kW for unit R, 7,5 kW for unit B, 1,1 kW for unit D
working rolls diameter is 120 mm working rolls diameter is 120 mm
workpiece thickness 0,5 - 160 mm workpiece thickness 0,5 - 160 mm

Use

Wide belt sanders Maxx 4 series are designed for sanding (machining) workpieces from metal. During machining sanded materials must not sparkle or significantly change their features and shape due to increased teperature.

Interesting product

Specifications

Sanding belt width 430 mm
Sanding belt length 1 900 mm
Table stroke 220 mm
Shaft diameter 60 mm

3D Model

0%

    Standard equipment

    Optional accessories
