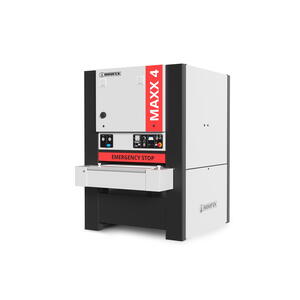

Wide-belt sander Maxx 4 800

Original construction of the series Maxx 4 has been developed for customers who require simplicity, reliability and quality for all technologies of sanding. Metal sanding is very easy task for this machine.

Maxx 4 excels in its robustness, reliability and variable combination of sanding units. Main advantage of wide belt sanders Maxx is satisfaction and reliability of thousands of customers proven worldwide.

Machine benefits

2011
We produce the machine since 2011
11
We delivered the machine to 11 of the world's countries
60
We produced the machine for 60 of satisfied customers

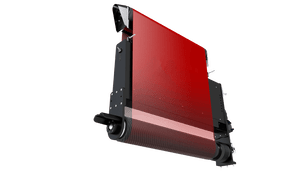

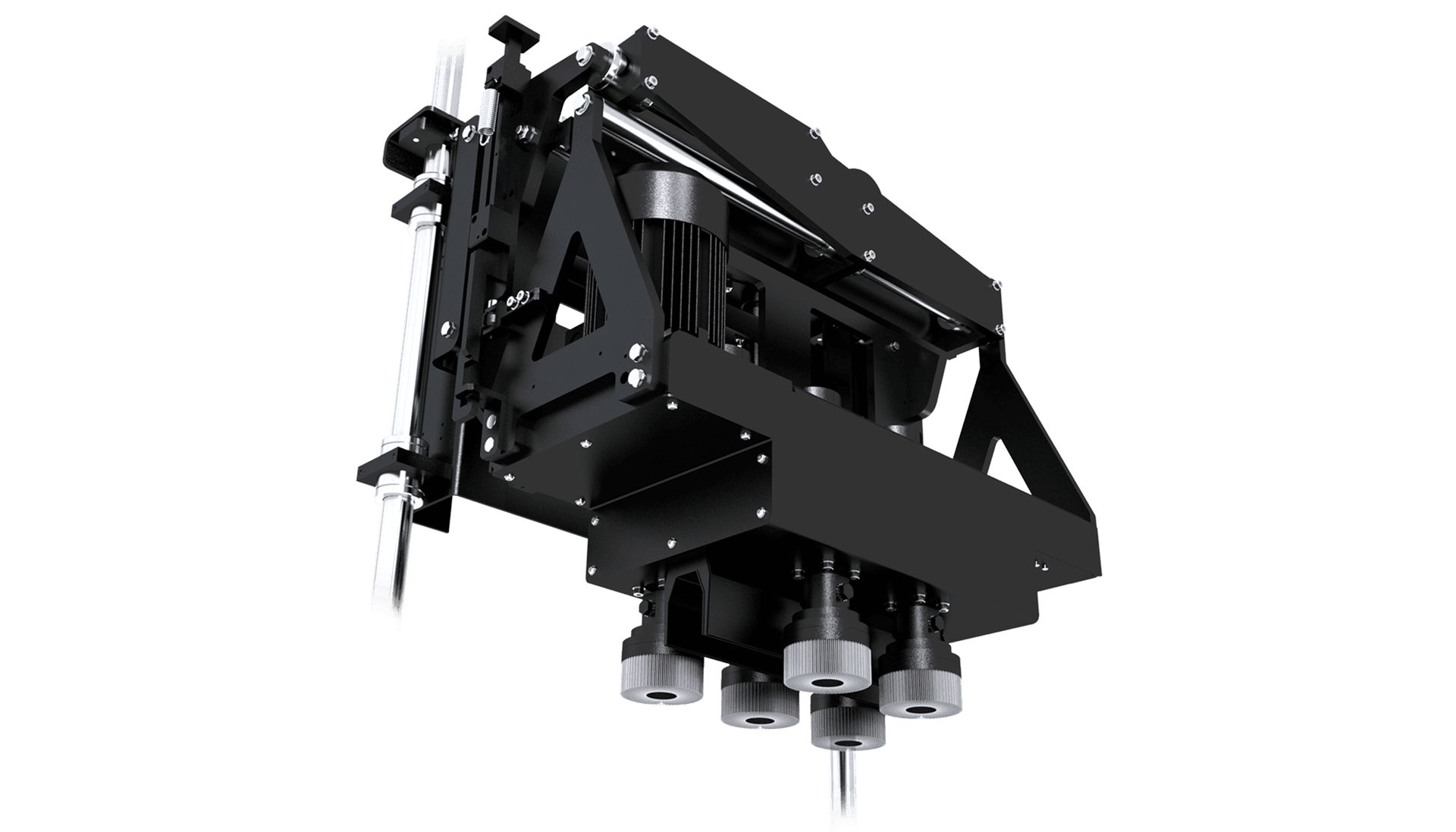

combines 3 different types of working units (drum brush B, disc brush D, grinding roller R) combines 3 different types of working units (drum brush B, disc brush D, grinding roller R)
sanding belt length is 1900 mm - optional  2200 mm sanding belt length is 1900 mm - optional 2200 mm
working rolls diameter is 120 mm working rolls diameter is 120 mm
workpiece thickness 0,5 - 160 mm workpiece thickness 0,5 - 160 mm
sand up to 800 mm wide material sand up to 800 mm wide material
11 - 15 kW for unit R, 7,5 kW for unit B, 1,5 kW for unit D 11 - 15 kW for unit R, 7,5 kW for unit B, 1,5 kW for unit D

Use

Wide belt sanders Maxx 6W series are designed for sanding (machining) workpieces from metal.

Interesting product

  • Universal machine with variety of working units, proved robust contruction.

Specifications

Sanding belt width 830 mm
Sanding belt length 1 900 mm
Table stroke 220 mm
Shaft diameter 60 mm
Motor power RB 800 11 a 7,5 kW
Motor power RRB 800 2 x 11 a 7,5 kW
Motor power RBB 800 11 a 2 x 7,5 kW
Motor power RBR 800 2 x 11 a 7,5 kW
Motor power RDB 800 11 a 1,5 a 7,5 kW
Motor power RBD 800 11 a 1,5 a 7,5 kW
Motor power R 800 7,5 a 11 kW
Motor power RR 800 2 x 7,5 a 2 x 15 kW
Motor power RRR 800 3 x 7,5 a 3 x 11 kW
Motor power RD 800 11 a 2,2 kW
Motor power RRD 800 2 x 11 a 1,5 kW
Motor power RDR 800 2 x 11 a 1,5 kW
Motor power RDD 800 11 a 2 x 1,5 kW

3D Model

0%

    Standard equipment

    • rubbered roller D=120 mm, 60 Sh
    • sanding belt speed 18 m/s
    • sanding belt dimensions 430x1900 mm, 830x1900 mm, 1120x1900 mm, 1330x1900 mm
    • motorized table height adjustment
    • min./max. workpiece height 0,5/160 mm
    • automatic star/delta switch
    • feed belt motor frequency inverter- speed 2-10 m/min
    • ammeter for motor of sanding unit
    • optical sensor control of abrasive belt oscillation
    • electronic measuring of table position with digital display
    • rubber pressure rollers with covered quides
    • main motor pneumatic disc brake
    • pressure switch 3,5-4,0 bar
    • sanding belt
    • CE certification

    Optional accessories

    • motor 11 kW (15 HP) for width 400 mm
    • motor 15 kW (20 HP) for width 800, 1100, 1300 mm
    • two speed motor for table height adjustment
    • main motor frequency inverter- speed 10-35 m/s
    • NC machine control
    • colour Touchscreen 10,1“
    • elestronic adjustment of contact roller position by stepper motor
    • rubbered roller D=120 mm, 30 Sh, 45 Sh, 90 Sh
    • rubbered roller D=160 mm, 30 Sh, 45 Sh, 90 Sh
    • timed air cleaning device for sanding belt-1 pc, automatic feed belt tracking
    • sanding belt 2200 mm (machine height + 200 mm)
    • table lift 220 mm
    • electronical limitation of maximum material removal
    • extension table with rollers- front and rear 400 mm
    • extension table with flat plate-front and rear 500 mm
    • vacuum table
    • magnetic table width 150 mm, 300 mm
    • vacuum pump for width 400 mm, 800 mm, 1100 mm, 1300 mm
    • flat feeding belt
    • module for feeding belt cleaning
